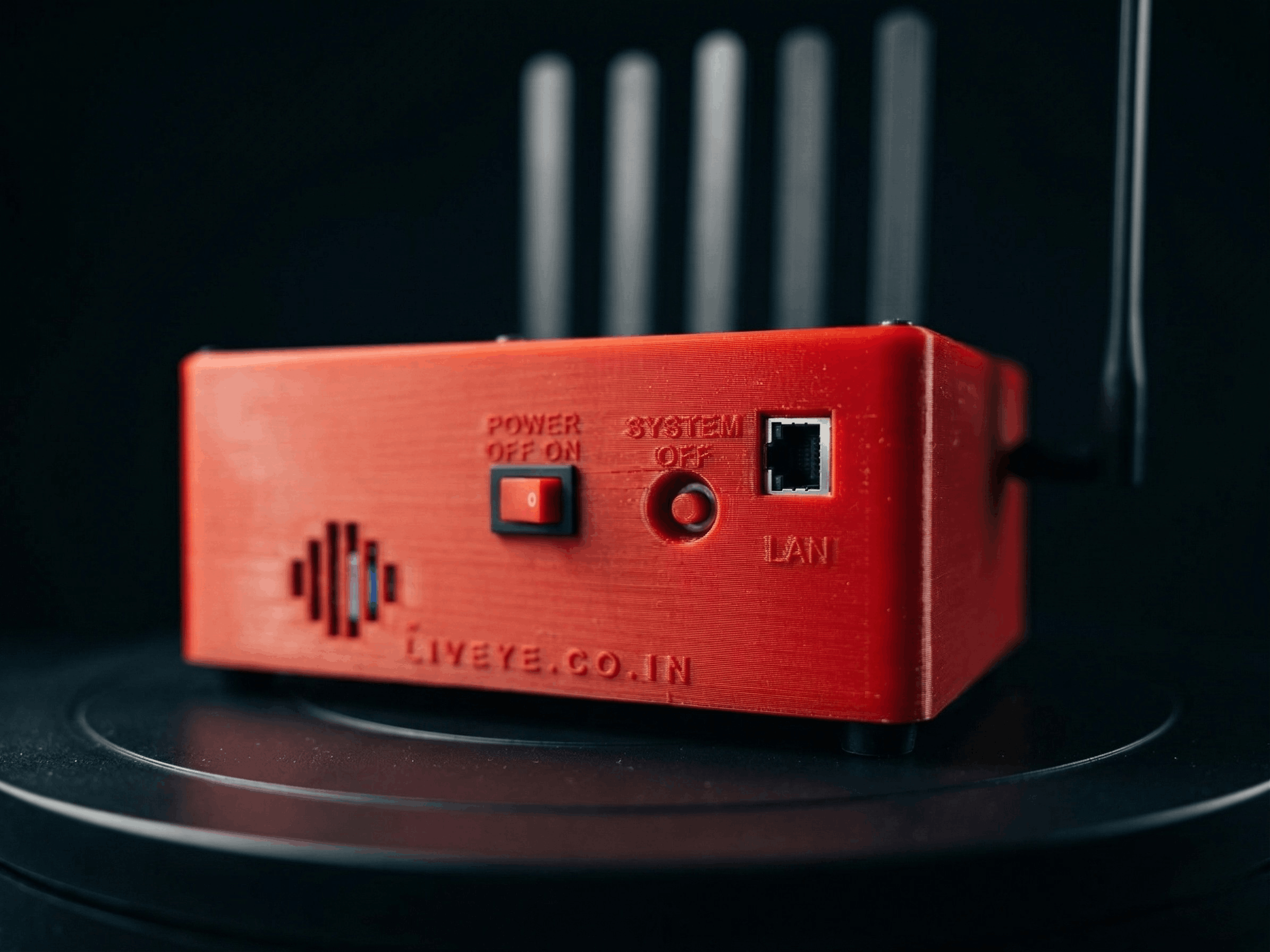

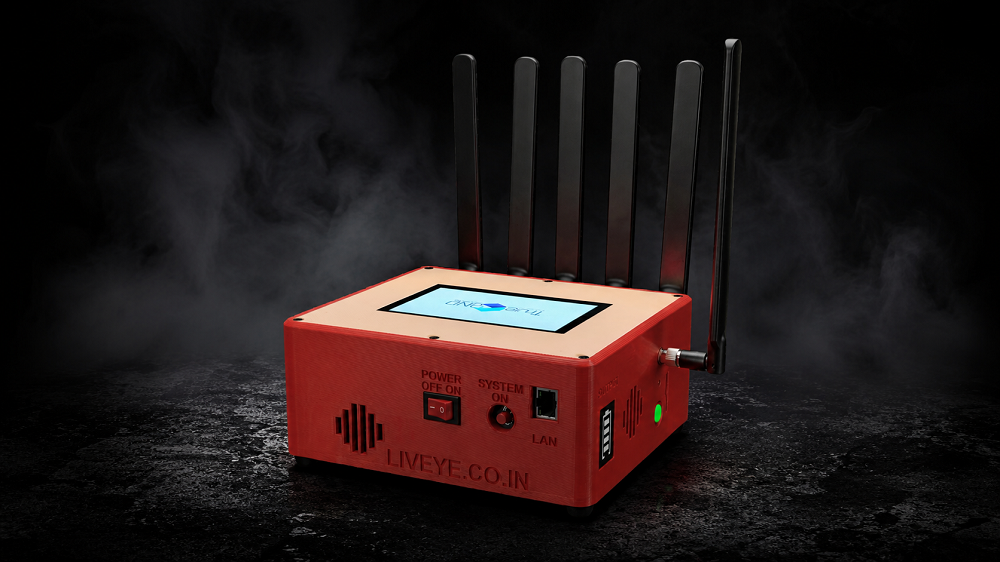

Truebond Pro

Flagship Wireless Video Transmitter

The Truebond Pro delivers zero-delay 4K wireless transmission up to 500 metres with HDR10 pass-through and 10-bit colour depth. Built for cinema-grade productions, outdoor broadcasts, and stadium sports.

4K60

Resolution

<1 ms

Latency

500 m

Range (LOS)

HDR10

Colour

Request Quote Spec Sheet

ModelLV-PRO-4K-2026

SKULIV-P4K-IN-RTL

Warranty2 Years (India)

Lead TimeIn stock · Ships in 24 hrs

Technical Specifications

Built for Pro Workflows

Video

Resolution	Up to 3840 × 2160 @ 60 fps
Colour Depth	10-bit 4:2:2
HDR	HDR10, HLG, Dolby Vision pass-through
Codec	H.265 / HEVC, H.264 (legacy)
Bitrate	5 – 80 Mbps adaptive

Wireless / RF

Frequency	5.1 – 5.9 GHz (DFS aware, BIS approved)
Range (LOS)	Up to 500 m
Latency	< 1 ms end-to-end
Channels	16 selectable, auto frequency hopping
Encryption	AES-128 link encryption

Connectivity

Video Input	HDMI 2.0, 12G-SDI
Video Output	HDMI 2.0, 12G-SDI loop-out
Network	1 GbE, Wi-Fi 6 (control)
USB	USB-C (PD + data), USB-A (firmware)
Timecode	BNC LTC in/out

Power & Build

Power Input	7 – 17 V DC, 18 W typ.
Mounts	NP-F, V-mount, USB-PD
Dimensions	112 × 78 × 28 mm
Weight	240 g (TX), 280 g (RX)
Operating Temp	−10 °C to +50 °C
